Apps / REV Hub Interface - Community Edition

REV Hub Interface - Community Edition

Directly control a REV Robotics Expansion Hub

The Unofficial REV Port Team ✓ Verified

org.unofficialrevport.REVHubInterface
View on Flathub ↗

The REV Hub Interface is a piece of software allowing for a direct connection from a REV Expansion Hub and its peripherals to a PC.

This interface provides a method for teams to prototype with motors, servos, and sensors in a way that is faster and easier than setting up an entire robot control system. It is also a valuable troubleshooting tool that can help isolate the cause of an issue and determine if it is electrical or software related. The REV Hub Firmware can also be updated and recovered through this interface in addition to the Robot Controller Application.

This is a community continuation of the software, updating to newer underlying technologies (e.g. porting from Python 2 to Python 3), adding features, and porting to more platforms (Linux and macOS, in addition to Windows). Though initially created by REV, this version of the software is not maintained by or affiliated with REV. Do not contact REV support about any issues you experience with this software.

Website ↗Source code ↗Subscribe via RSS

Screenshots

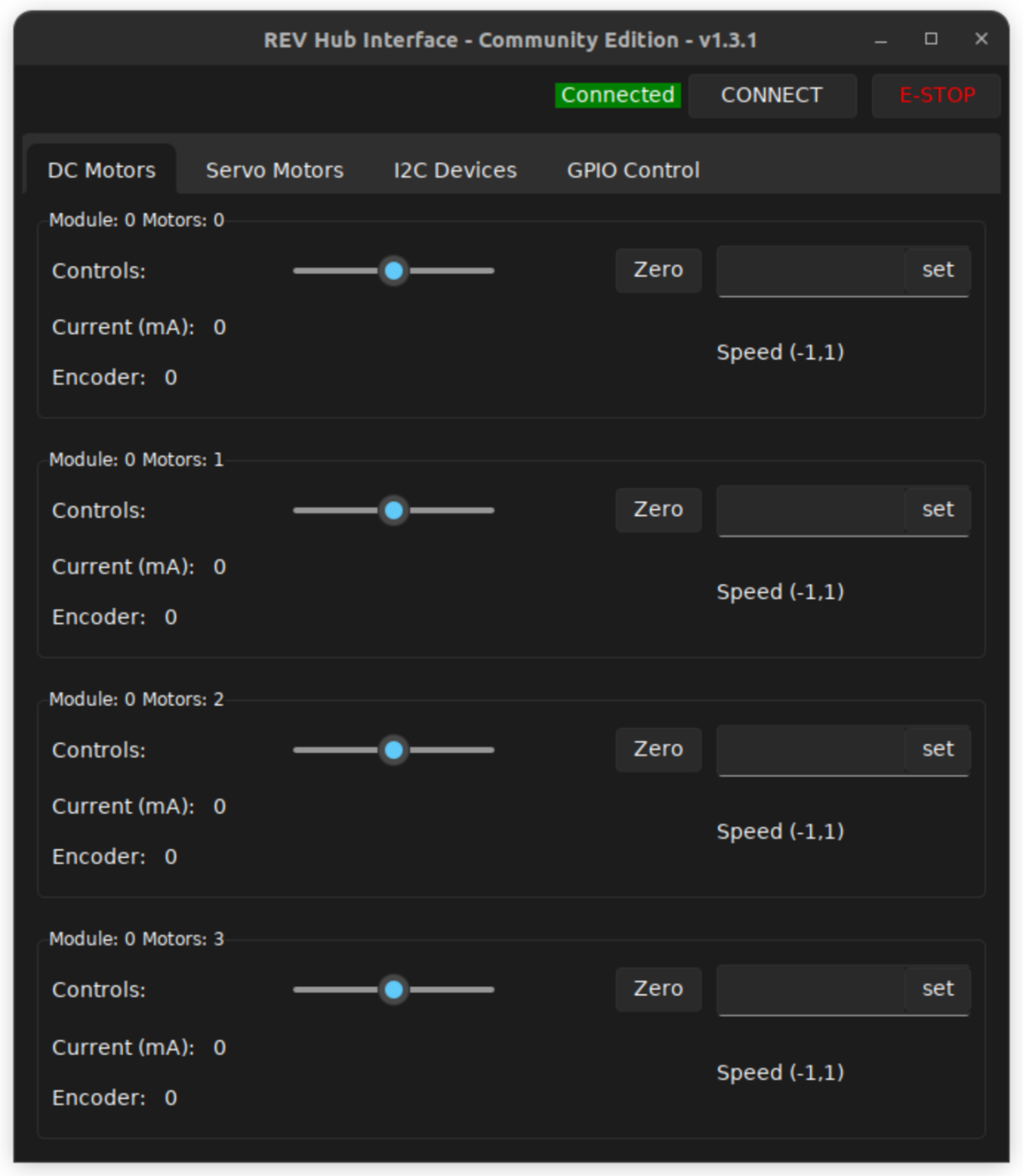

Controlling motors
Controlling motors

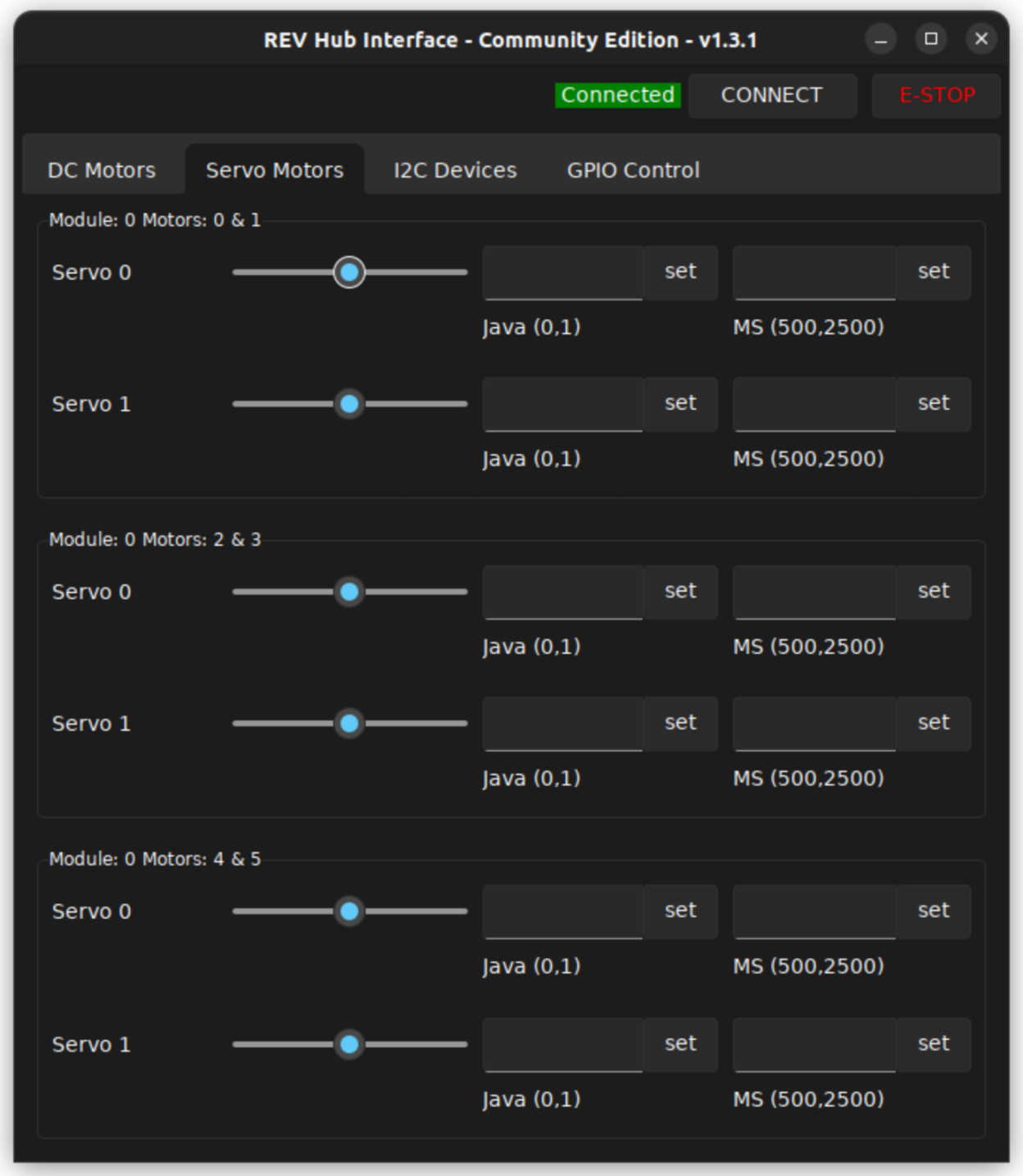

Controlling servos
Controlling servos

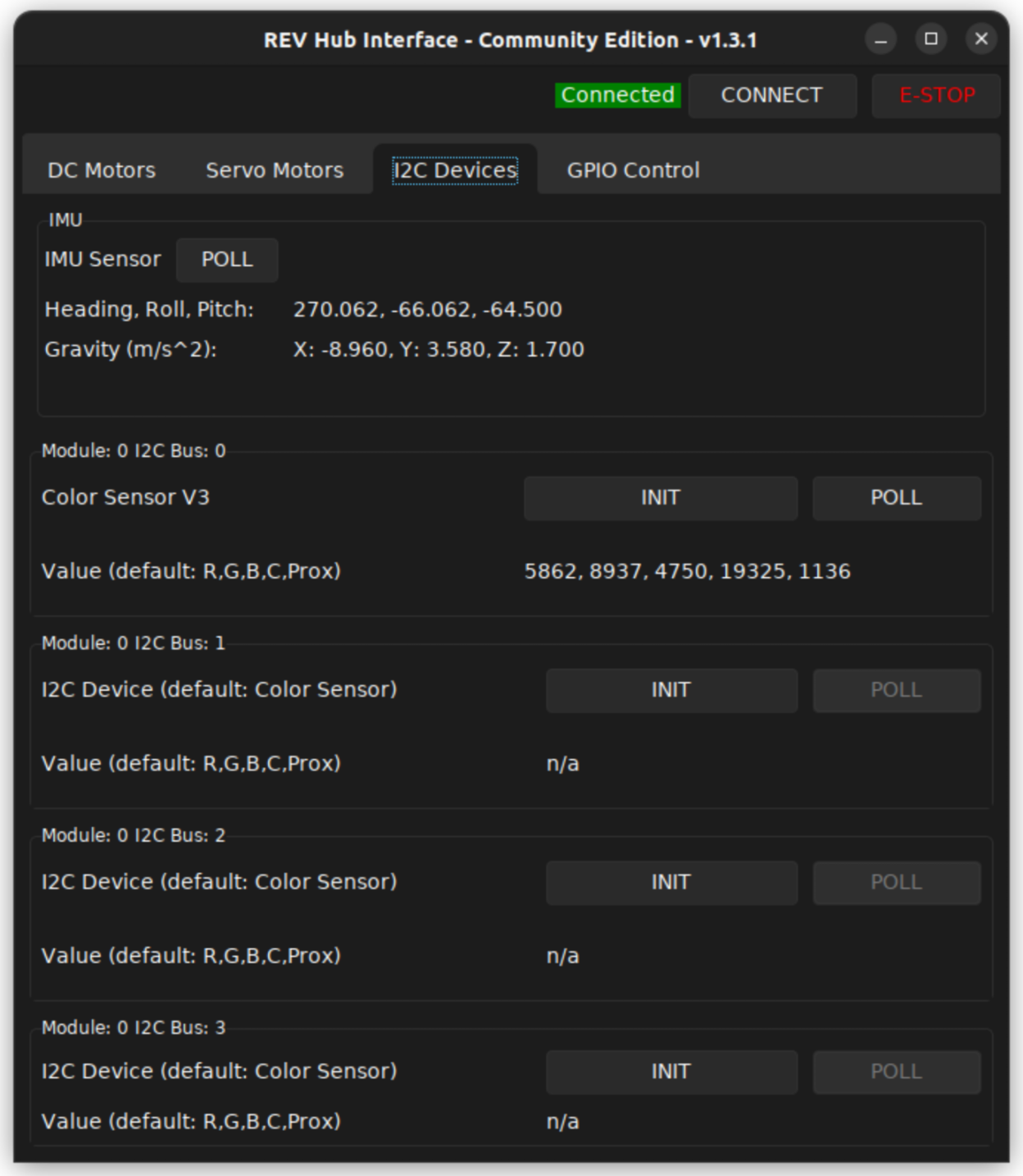

Reading from I2C devices
Reading from I2C devices

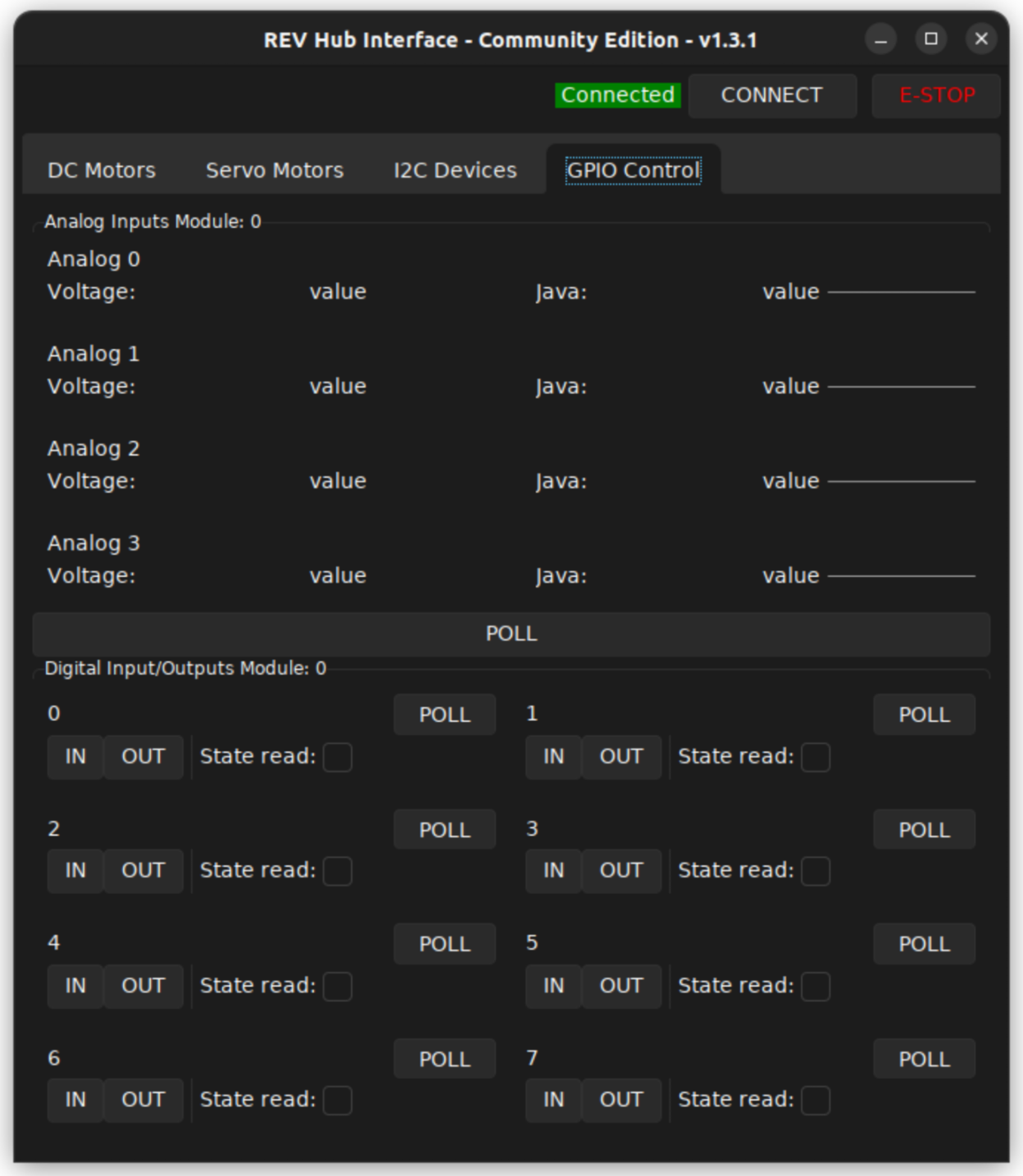

Controlling GPIO ports
Controlling GPIO ports

Observed history

App ChangeVersionWhen ↓
updated1.4.29 Oct 2026

Upstream releases

Release notes supplied by the developer. These dates are not Flathub package publication times.

1.4.24 Oct 2026

Small refinement update

  • Tell user when they do not have the necessary permissions to access the hardware
  • Updates to support new Flatpak runtime
1.4.117 Sept 2024

Better error handling and improved documentation!

  • We have added more detailed error handling in this release
  • This should hopefully help us narrow down some occasionally-reported issues
1.42 Jul 2024

Motor Run to Position (PID) support and more!

  • You can now tell a motor to run to a position, equivalent to the FTC SDK's RUN_TO_POSITION mode
  • The overall update rate of the application is increased for better responsiveness
1.3.413 Jun 2024

Flathub release!

  • Finally published builds to Flathub!
  • Also added dev app icon
